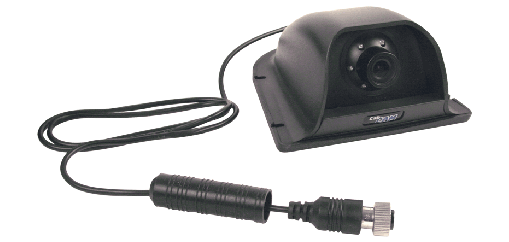

Side Mount Camera, A-SVC402
Side Mount Color Camera
PN: A-SVC402

Enhance visibility around your equipment with the A-SVC402 Side Mount CabCAM™ Camera. Designed for use with wired CabCAM systems, this rugged camera provides reliable side-view monitoring to help operators see more of their surroundings, day or night. Its contoured housing allows for versatile mounting locations, while the weatherproof construction is built to withstand demanding off-road and agricultural environments.

Whether you're monitoring equipment attachments, blind spots, or surrounding work areas, the A-SVC402 delivers dependable performance where it matters most.

Image Device 1/3" Sharp Sensor CCD AGC On
TV System
NTSC | PAL
S/N Ratio +48db
Effective Pixels
512 x 492 | 512 x 582
White Balance Auto
Sensing Area 4.9mm x 3.7mm Electronic Shutter 1/10,000 Second
Sync. System Internal BLC Auto
Resolution 420 TV Lines Current Consumption Max. 200mA
Minimum Illumination 0 Lux / F2.0 Power Supply DC12V
Video Output 1.0vp-p, 75Ohm Operating Temperature -20°C ~ 70°C
Lens f=3.6mm / f=2.0 Storage Temperature -40°C ~ 80°C
Lens & Lens Angle 92° Warranty 1 Year
